1、性能稳定,保障计数稳定
2、体积小巧,安装方便
3、RS485通讯,支持ModbusRTU协议,支持定制化通讯协议。
4、智能物联,远程启动,更准确管理洁净度等级,提高洁净度监测质量
在线尘埃粒子计数器采用光学散射原理,可精确检测并计算单位体积内空气中不同粒径的悬浮颗粒物的个数,内置上海镭慎自主研发的光学传感器,是一款应用于洁净环境的洁净度监控、微粒子计数检测等领域的检测仪器。在线尘埃粒子计数器具有体积小、重量轻、安装方便、稳定性好、测量精度高等特点。广泛应用于洁净室监测、滤料测试、口罩测试等行业。
The inline airborne particle counter adopts the principle of optical scattering, which can accurately detect and calculate the number of suspending particles of different particle sizes in the air per unit volume. The built-in optical sensor independently developed by Shanghai Lasensor is a detection instrument used in the fields of cleanliness monitoring and particle counting detection in clean environments. The inline airborne particle counter has the characteristics of small volume, light weight, easy installation, good stability and high measurement accuracy. It’s widely used in clean room monitoring, filter material testing, mask testing and other industries.
详细参数 | ||||

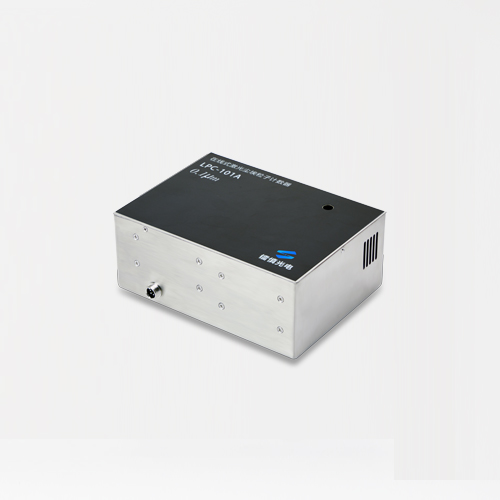

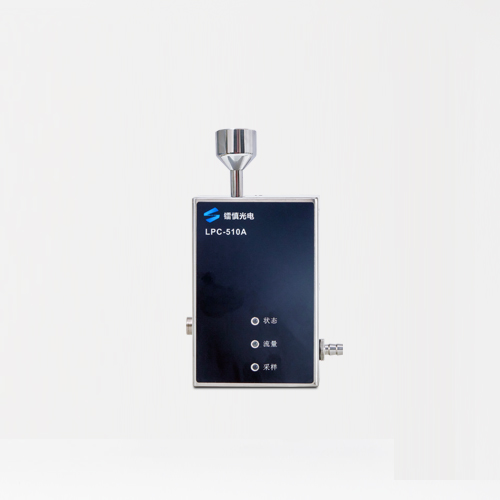

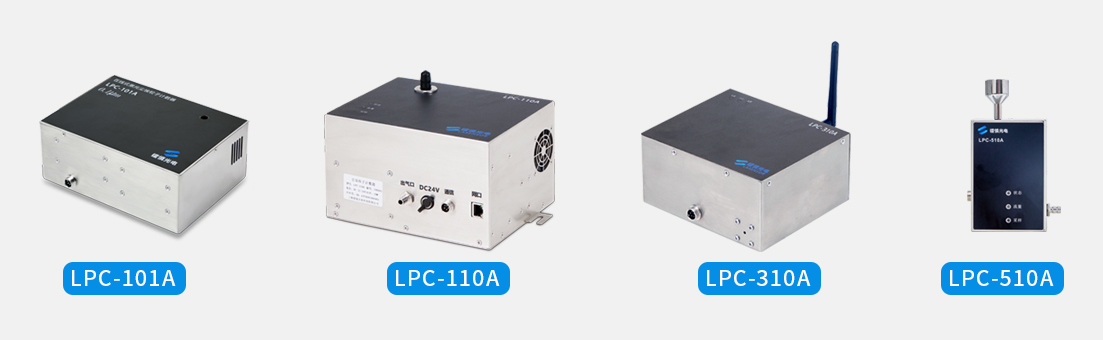

型号 Model | LPC-101A | LPC-110A | LPC-301A | LPC-510A |
流量 Flow | 2.83L/min | 28.3L/min | 2.83L/min | 28.3L/min |
粒径通道 PM Ranges | 0.1μm、0.15μm、0.2μm、0.25μm、0.3μm、0.5μm、 1.0μm、5.0μm | 0.3μm、0.5μm、1.0μm、3.0μm、5.0μm、10μm | 0.5μm、5.0μm | |
计数效率 Counting Efficiency | 50±20%FS | |||
浓度上限 Maximum Concentration1 | 35000颗/L | |||
自净时间 Clean-down Capability | ≤10min | |||
激光光源 Laser Classification | 长寿命半导体激光光源 | |||
通讯方式 Communication | RS485 @ModbusRTU | |||
真空 Vacuum | 内部真空源 | 外部真空源 | 内部真空源 | 外部真空源 |
电源 Power Supply | DC 12-12V | |||
重量 Weight | 2kg | 2.7kg | 1.1kg | 0.76kg |
尺寸 size | H80*D140*W190mm | H125*D160*W205mm | H75*D130*W150mm | H120*D60*W80mm |
外壳 Housing Material | 不锈钢 | |||
工作环境 Work Environment | 温度5℃~35℃,湿度0~98%(不结露) |
| |
